| ブランド名: | Cenlee |
| モデル番号: | GL21M |
| MOQ: | 1 |
| 価格: | $6,900-7,500 |

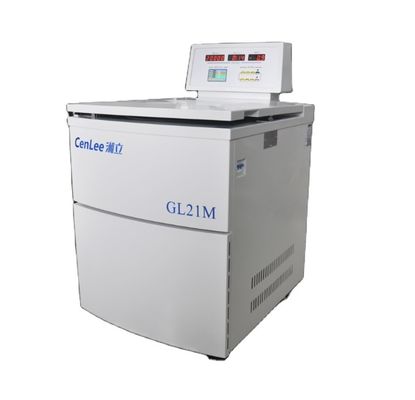

| Model | GL21M |
| Max. Speed (r/min) | 21000 |
| Max. RCF (x g) | 48900 |
| Max. Capacity (ml) | 3000 |

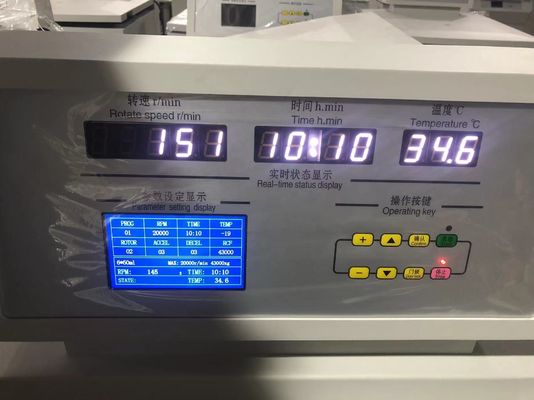

| Control System | Microprocessor |
| Drive System | AC Frequency Conversion Motor with large torque |
| Acceleration/Deceleration Rates | 10/10 |
| Program Storage | 40 programs |
| Refrigeration System | Environmental CFC-free with R404a refrigerant |
| Speed Range (r/min) | 100-21000 |
| Speed Control Accuracy (r/min) | ±20 |
| Temperature Range (°C) | -20 to +40 |
| Temperature Accuracy (°C) | ±1 |
| Timer Range | 0-99:59:59 |
| Noise Level (dB) | ≤ 65 |
| Power Requirements | 220/110V (50/60Hz), 35A, 3 phase |
| Dimensions (W x D x H) mm | 860 x 730 x 1200 |
| Weight (kg) | 300 |
| Rotor Type | Rotor No. | Max. Capacity (place x ml) | Max. Speed (rpm) | Max. RCF (x g) | Tube Size (Range, ml) | Adapters for smaller tubes |
|---|---|---|---|---|---|---|
| Fixed Angle Rotor | 1 | 16 x 1.5/2.2 | 21000 | 48900 | 0.2-2.2 | Available |
| Fixed Angle Rotor | 1 | 16 x 10 | 21000 | 48900 | 0.2-10 | Available |
| Fixed Angle Rotor | 2 | 6 x 50 | 20000 | 43000 | 0.2-50 | Available |
| Fixed Angle Rotor | 3 | 8 x 50 | 15000 | 27720 | 0.2-50 | Available |
| Fixed Angle Rotor | 4 | 8 x 100 | 13000 | 19830 | 0.2-100 | Available |
| Fixed Angle Rotor | 5 | 4 x 300 | 11000 | 19300 | 0.2-300 | Available |
| Fixed Angle Rotor | 6 | 6 x 300 | 10000 | 18300 | 0.2-300 | Available |
| Fixed Angle Rotor | 7 | 6 x 500 | 8000 | 11680 | 0.2-500 | Available |

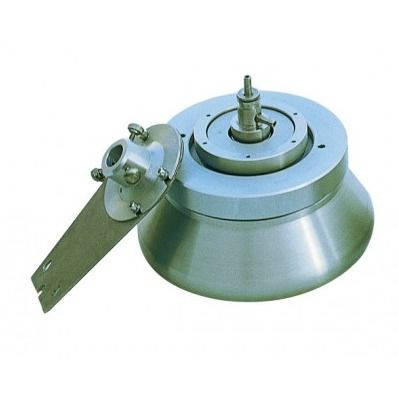

| Continous Rotor | 8 | 1 x 1800 | 14000 | 21710 | 0-1800 | Unavailable |
| Continous Rotor | 9 | 1 x 3000 | 8000 | 9450 | 0-3000 | Unavailable |
| Intermittent Rotor | 10 | 1 x 1000 | 17000 | 31390 | 0-1000 | Unavailable |
| Intermittent Rotor | 11 | 1 x 1200 | 12000 | 19350 | 0-1200 | Unavailable |
| Intermittent Rotor | 12 | 1 x 3000 | 10000 | 14890 | 0-3000 | Unavailable |
| Vertical Rotor | 13 | 16 x 5 | 20000 | 38340 | 0.2-5 | Available |
| Vertical Rotor | 14 | 8 x 30 | 18000 | 32650 | 0.2-30 | Available |
| Microplate Rotor | 15 | 2 x 2 x 96wells | 4000 | 2300 | 0.2 | Available |
| Swing-out Rotor(500ml) with round buckets | 16 | 4 x 500 | 5000 | 5470 | 5-500 | Available |
| Swing-out Rotor with tube holders | 17 | 4 x 50 | 5000 | 4390 | 5-50 | Available |
| Swing-out Rotor with tube holders | 18 | 4 x 8 x 15 | 4000 | 3160 | 5-15 | Available |
| Swing-out Rotor with tube holders | 19 | 4 x 2 x 50 | 4000 | 2950 | 5-50 | Available |
