| ブランド名: | Cenlee |
| モデル番号: | TDL5M |
| MOQ: | 1 |

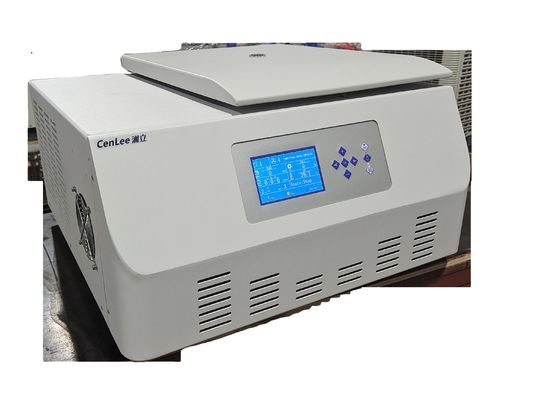

| Model | TDL5M |
| Max. Speed (r/min) | 6000 |
| Max. RCF (x g) | 5120 |
| Max. Capacity (ml) | 4 x 250 |
| Control | Microprocessor |
| Drive | AC Frequency Conversion Motor |
| Acceleration/Braking Rates | 10/10 |
| Speed Range (r/min) | 50-6000 |
| Speed Control Accuracy (r/min) | ±20 |
| Temperature Set Range (°C) | -20 to +40 |
| Temperature Control Accuracy (°C) | ±1 |
| Timer Range | 0-99:59:59 |
| Noise (dB) | ≤ 58 |
| Power Supply | 220/110V (50/60Hz), 18A, single phase |
| Dimensions (W x D x H) mm | 700 x 660 x 410 |
| Weight (kg) | 95 |
| Rotor Type | Rotor No. | Max. Capacity (place x ml) | Max. Speed (rpm) | Max. RCF (x g) | Tube Size (Range, ml) | Adapters for smaller tubes |
|---|---|---|---|---|---|---|
| Fixed Angle Rotor | 1 | 12 x 10 | 6000 | 5120 | 1.5-10 | Available |

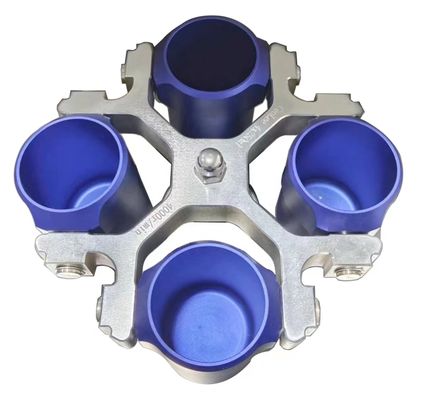

| Swing-out Rotor(250ml) with round buckets | 2 | 4 x 250 | 4000 | 3500 | 5-250 | N/A |
| Adapter | 4 x 50 | 4000 | 3500 | 50 | N/A | |

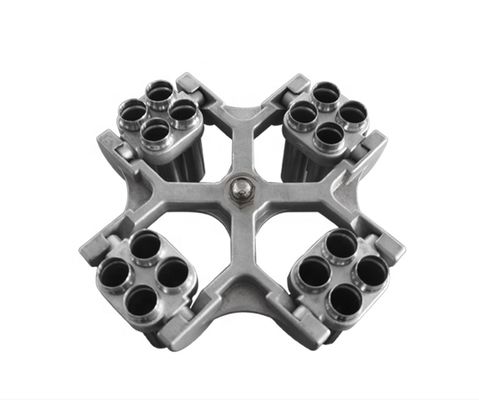

| Adapter | 4 x 4 x 10 | 4000 | 3500 | 10 | N/A | |
| Adapter | 4 x 10 x 5 | 4000 | 3500 | 5 | N/A | |

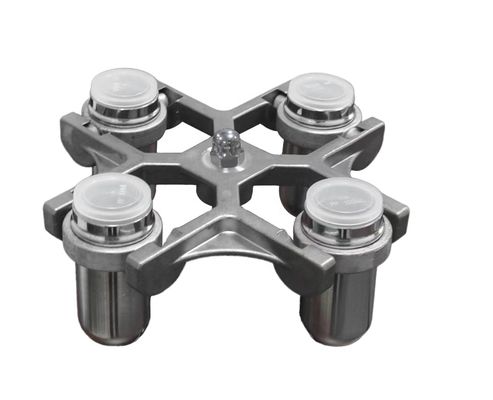

| Swing-out Rotor with tube holders | 3 | 4 x 100 | 5000 | 4390 | 0.2-100 | Available |
| Swing-out Rotor with tube holders | 4 | 8 x 50 | 4200 | 3100 | 5-750 | Available |
| Microplate Rotor | 7 | 2 x 2 x 96wells | 4000 | 2200 | 0.2 | N/A |
